Zen – Air Quality Monitor
Original price was: 400,00 €.370,00 €Current price is: 370,00 €.
The PurpleAir Zen is a real-time PM2.5 air quality monitor designed for indoor or outdoor use in residential, commercial, or industrial settings. Featuring a full-color LED ring, built-in Wi-Fi, and optional microSD logging, it provides instant visual feedback and seamless data access via the PurpleAir map. User-replaceable laser counters and sensor expansion ports ensure long-term flexibility.
7 in stock
Description
The PurpleAir Zen is our flagship air quality monitor.

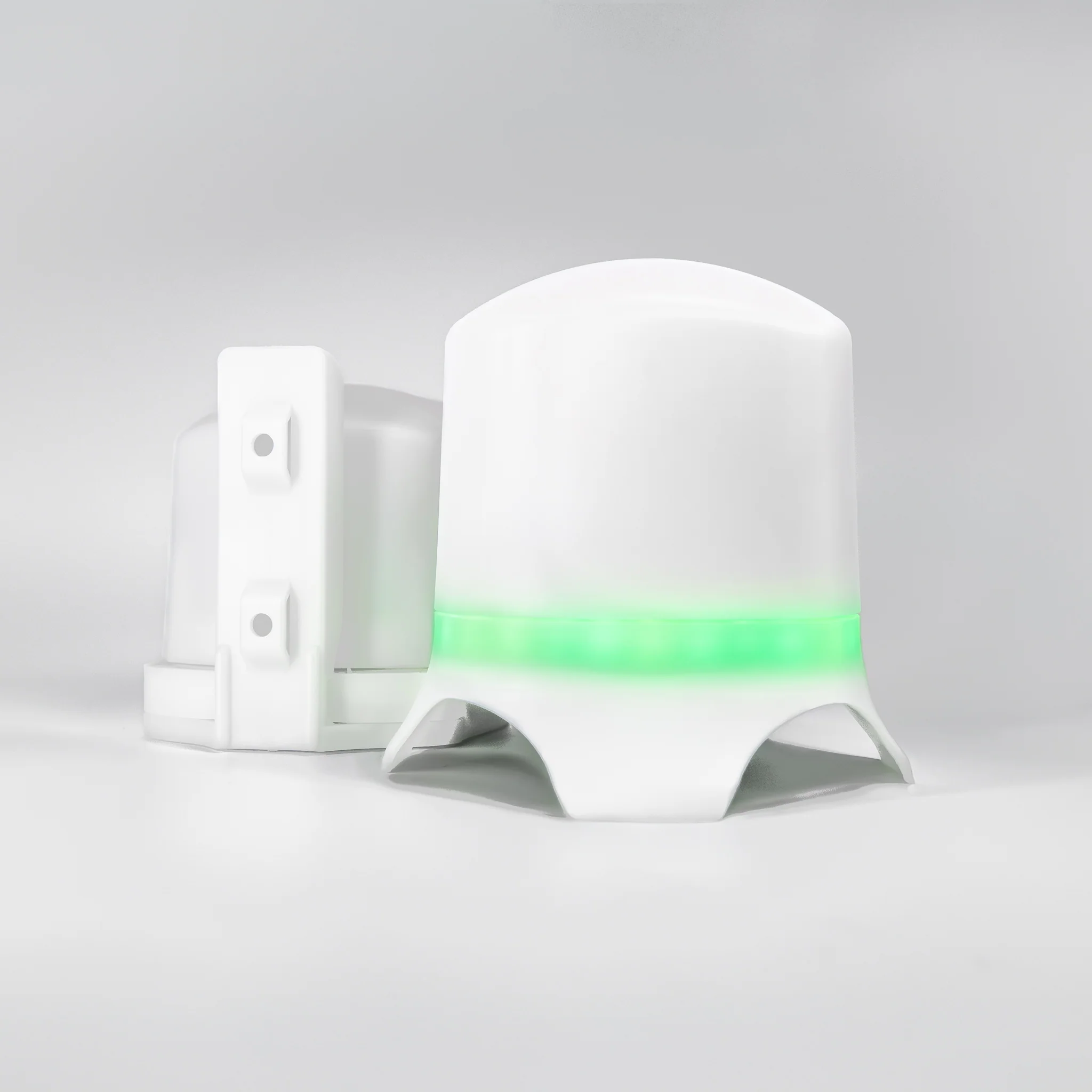

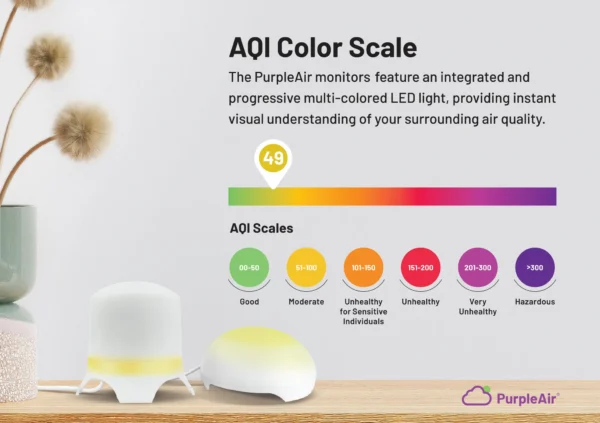

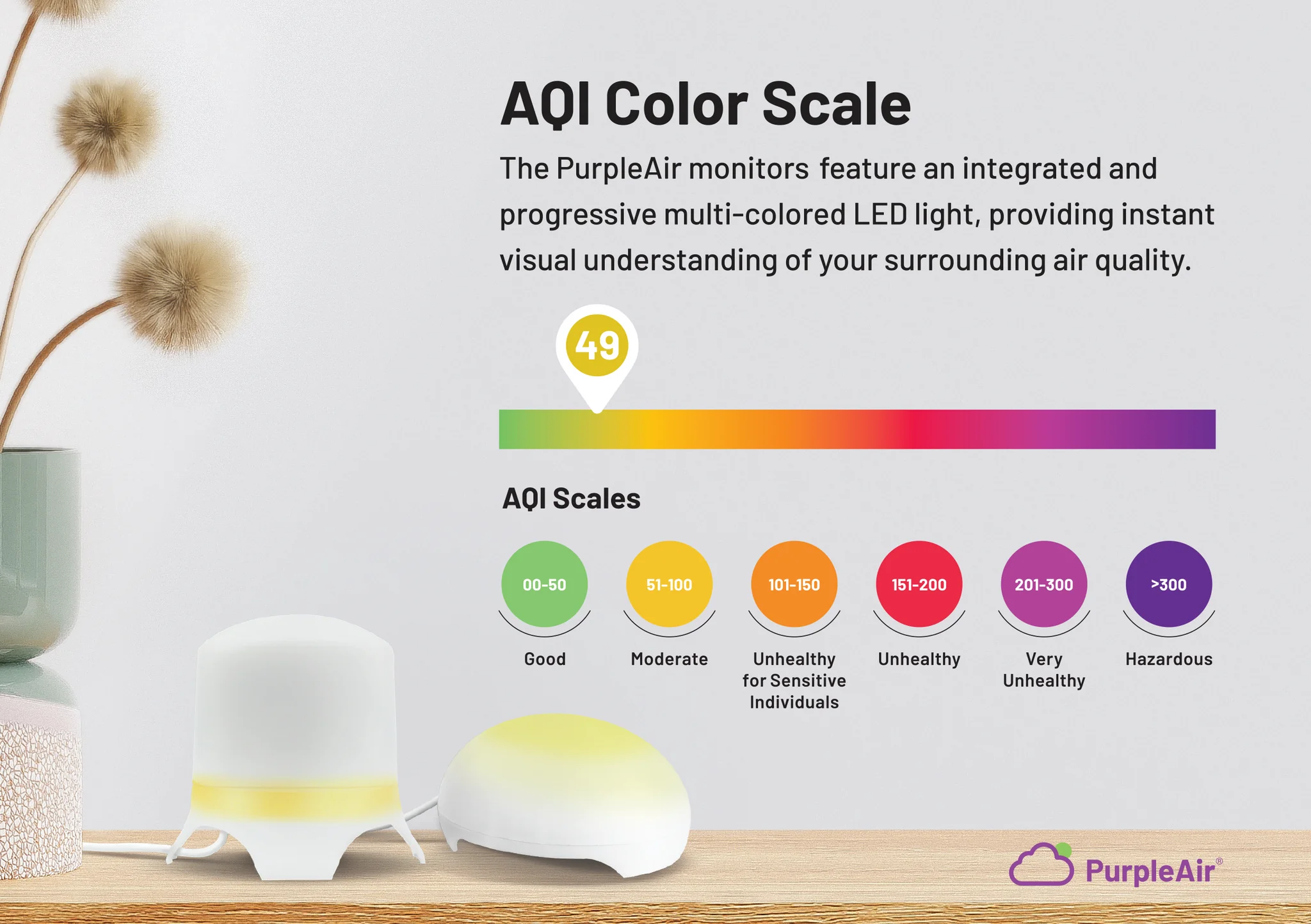

Featuring a swappable base mount, the Zen is built to be used inside or out. Powerful full-color LEDs show colors based on the US AQI scale, providing an instant visual representation of air quality at a glance. Whether from across a room or across the yard, know your air quality with ease. Utilize its double-tap feature to cycle through brightness levels and connect it to WiFi to see its real-time PM2.5 data on the PurpleAir real-time map, accessible by any smart device. The Zen’s modular design provides easy access to internals and is perfect for residential, commercial, or industrial users.
This sensor contains an SD logger for offline data collection but does not come with a microSD card.
Overview:

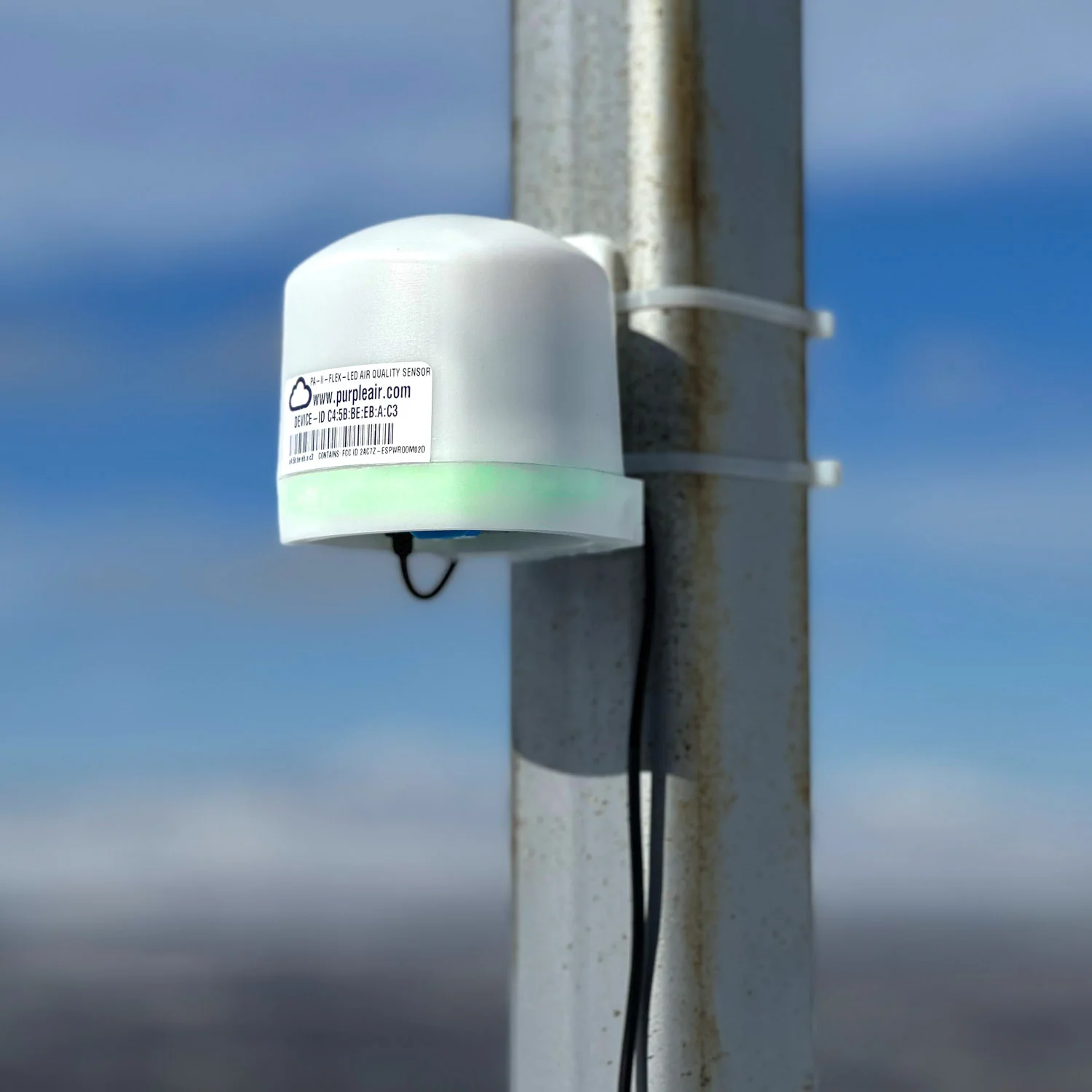

- The latest PurpleAir sensor with built in full color LED ring, and a tap sensor to adjust the brightness by tapping the sensor. This one can be used indoors and out with the included desktop or wall (or pole) mount.
- Tap sensor for adjusting LED brightness, double tap the sensor to adjust LED brightness.

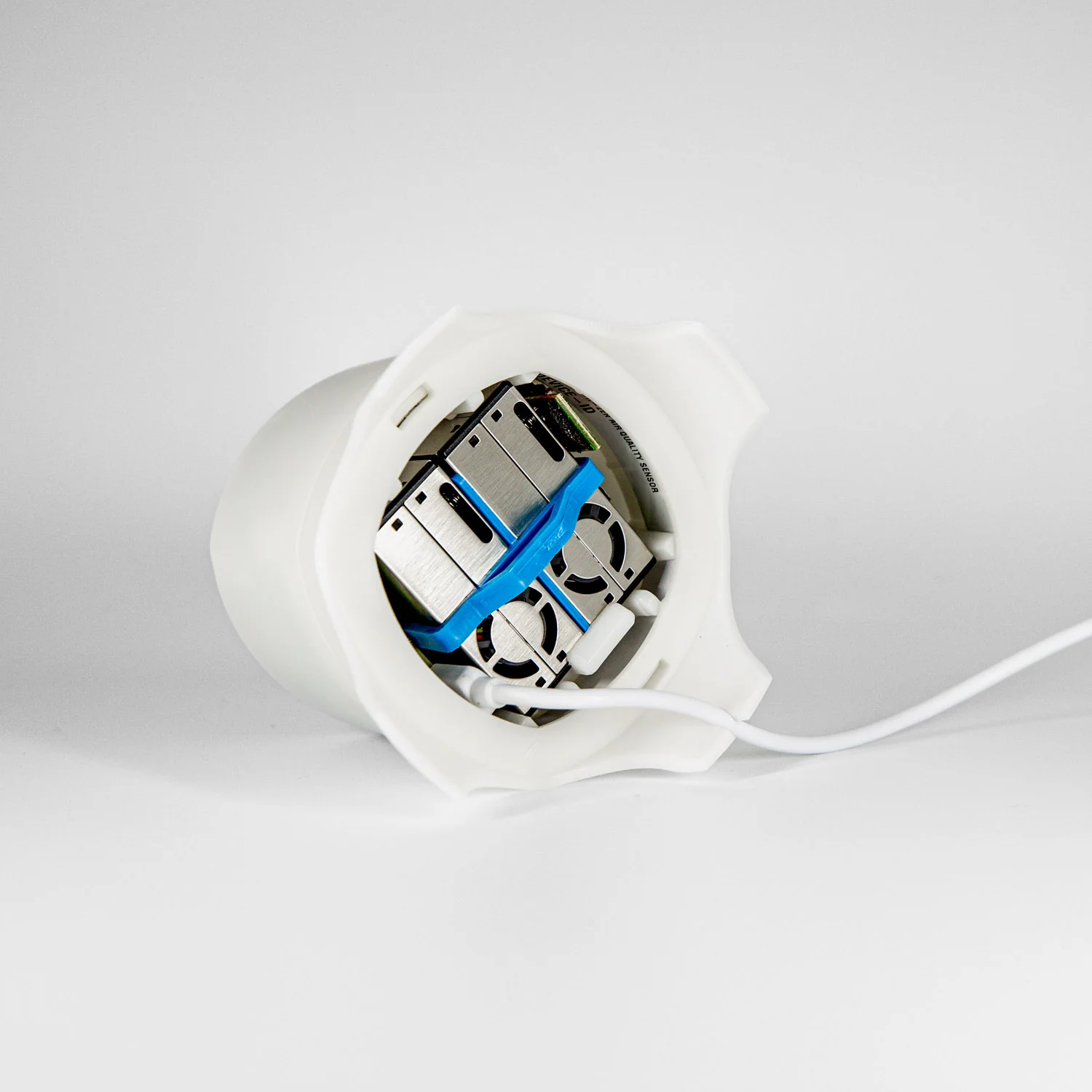

- User replaceable dual Laser Particle Counters (PMS-6003)
- Pressure, Temperature, Humidity & Gas Sensor (BME688)
- Built-in SD card logging and real-time clock for offline data capture
- WiFi connectivity with data stored in the cloud
Spec:
| Dimensions | 3.5 in x 3.5 in x 4 in (85 mm x 85 mm x 100 mm) |
| Color | Semi transparent |
| Power requirements | 5V USB Micro, 0.18A continuous, 600mA peak |
| Intended Use | Outdoor and indoor use |
| WiFi | Yes |
| Expansion Port | Yes |
| Internal Storage | Yes, optional microSD |
| Warranty | One (1) year limited warranty |
| Tap sensor for adjusting LED brightness, double tap the sensor to adjust LED brightness. | |
| Manufacturer | Kionix, Inc. |
| Model Number | KX122-1037 |
| Temperature range | -40°F to 185°F (-40°C to 85°C) |
| Mechanical Shock (powered and unpowered) | 5,000g for 0.5ms 10,000g for 0.2ms |
| Laser Particle Counters
Class 1 Laser. A Class 1 laser is safe under all conditions of normal use. |
|
| Manufacturer | Plantower |
| This device contains two particle detectors to provide redundancy and help determine sensor health. | |
| Type | PMS-6003 (2) |
| Range of measurement | 0.3, 0.5, 1.0, 2.5, 5.0, & 10 μm |
| Counting efficiency | 50% at 0.3μm & 98% at ≥0.5μm |
| Effective range (PM2.5 standard)* |
0 to 500 μg/m³ |
| Maximum range (PM2.5 standard)* | ≥1000 μg/m³ |
| Maximum consistency error (PM2.5 standard) | ±10% at 100 to 500μg/m³ & ±10μg/m³ at 0 to 100μg/m³ |
| Standard Volume | 0.1 liter |
| Single response time | ≤1 second |
| Total response time | ≤10 seconds |
| Pressure, Temperature, Humidity, & Gas Sensor | |
| Manufacturer | BOSCH |
| Model Number | BME688 |
| Temperature range | -40°F to 185°F (-40°C to 85°C) |
| Pressure range | 300 to 1100 hPa |
| Humidity | Response time (τ63%): 8s Accuracy tolerance: ±3% RH Hysteresis: ≤1.5% RH |
| Gas | Response time (τ33-63%): <1s Resolution: ±0.08% |
| Built-in SD Card Logger & Real-time Clock | |
| Real-time Clock (RTC) | DS3231 Extremely accurate I2C real-time clock |
| Real-time Clock Battery | CR2032 3V |
| SD Card | MicroSD card Takes microSD cards up to 64GB |
| SD Card Format | FAT32 |
| SD Card Data Access | Remove the microSD card by pushing it in to unlatch and then pull out with tweezers. Insert the SD card into a computer to access the csv and data files. More information on working with SD data is available here on the PurpleAir community site. We also provide a software tool to help work with this data here. |
| Wireless
Contains Transmitter Module FCC ID: 2AC7Z-ESPWROOM02D |
|
| Wireless Networks | 802.11b/g/n @ 2.4GHz (WPA2 pre-shared key or open networks) |
| Certificates | FCC/CE/TELEC/SRRC |
| Tx Power | 802.11 b: +20 dBm 802.11 g: +17 dBm 802.11 n: +14 dBm |
| Rx Sensitivity | 802.11 b: -91 dbm (11 Mbps) 802.11 g: -75 dbm (54 Mbps) 802.11 n: -72 dbm (MCS7) |
| Antenna Type | 2 dBi on-board PCB antenna |
| FCC Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Interference Statement (Part 15.105 (b)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help.
To comply with FCC/IC RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. |
|
Additional information
| Weight | 0,2 kg |
|---|---|
| Dimensions | 10 × 5 × 7 cm |
