Sale!
Touch - Air Quality Monitor
Touch - Air Quality Monitor - Image 2
Touch - Air Quality Monitor - Image 3
Touch - Air Quality Monitor - Image 4
Touch - Air Quality Monitor - Image 5

Touch – Air Quality Monitor

Original price was: 360,00 €.Current price is: 310,00 €.

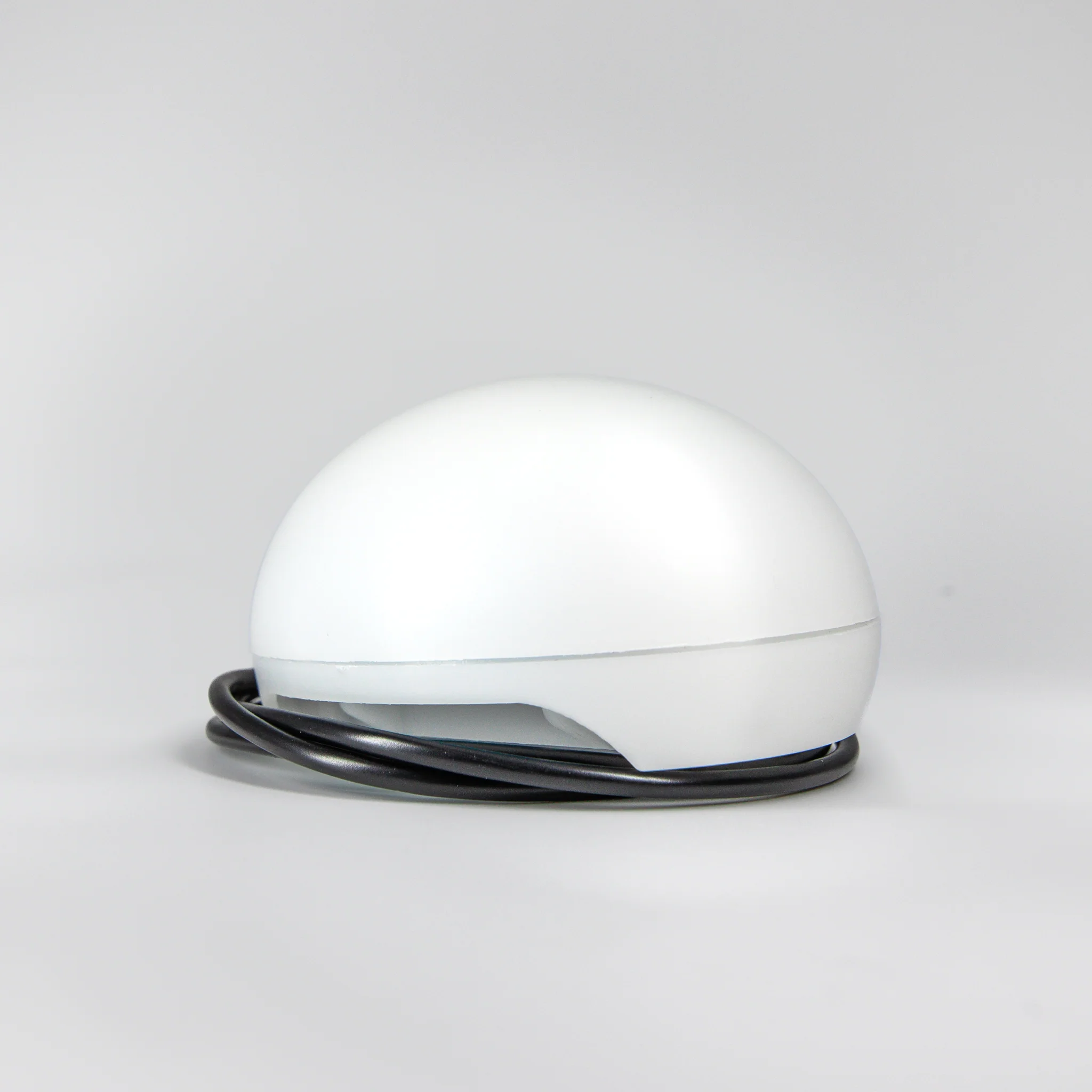

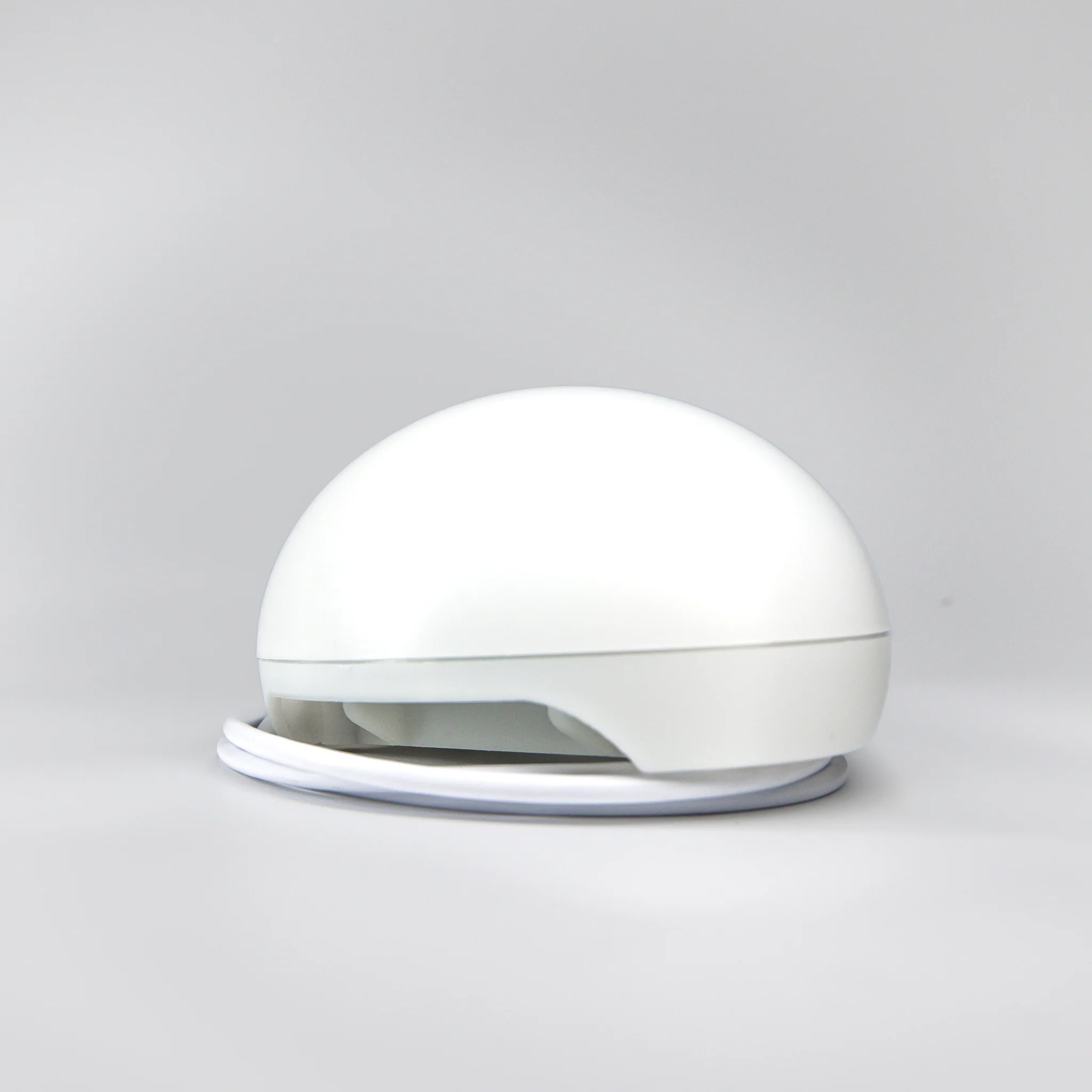

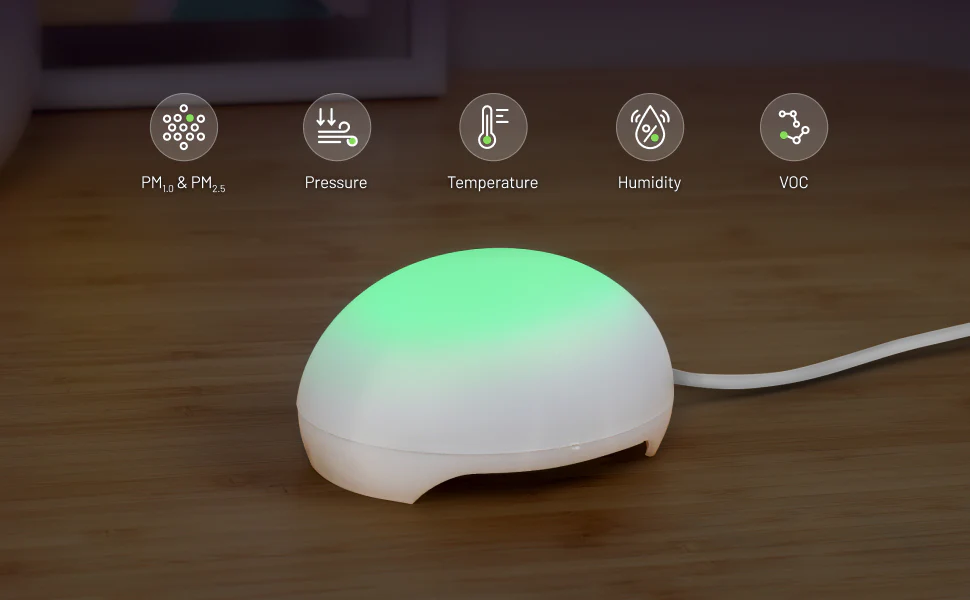

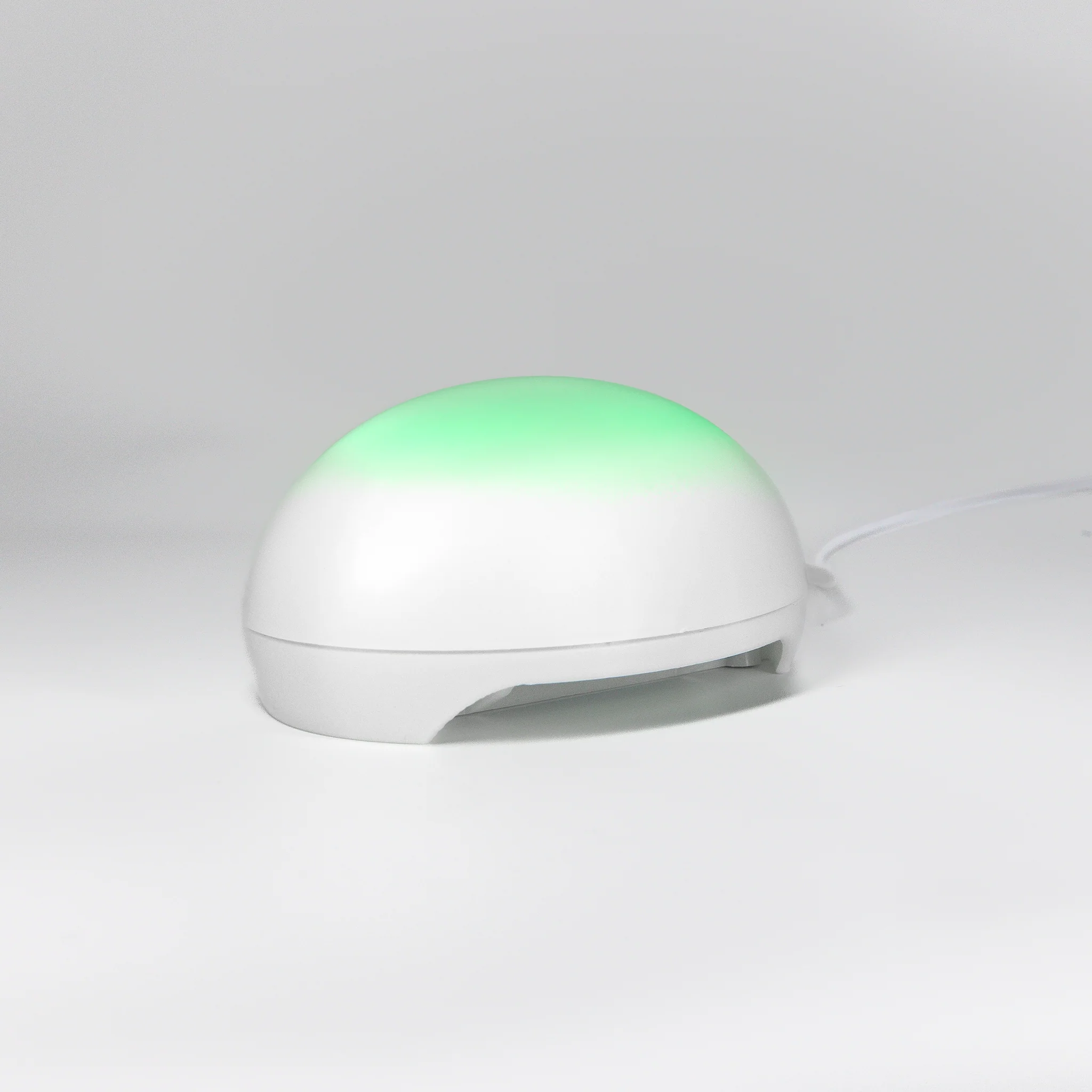

The PurpleAir Touch is a sleek indoor air quality monitor with built-in Wi-Fi, enabling real-time PM2.5 readings via the PurpleAir Map from anywhere. It features a highly visible multicolor LED ring with touch-adjustable brightness and measures PM2.5, PM10, VOCs, pressure, temperature, and humidity. Ideal for home use, it comes with a white USB cable and delivers reliable, cloud-connected performance.

7 in stock

SKU: 08 Category: Brand:

Description

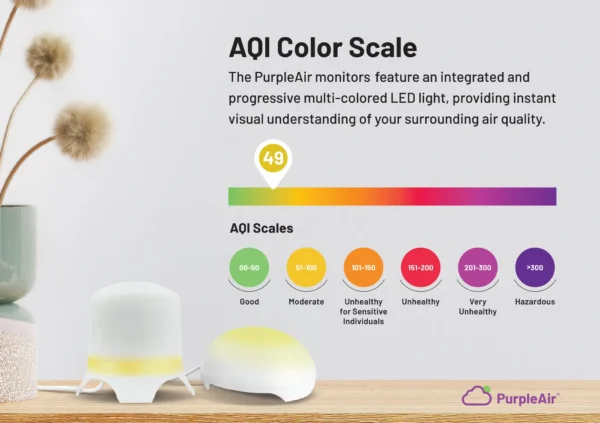

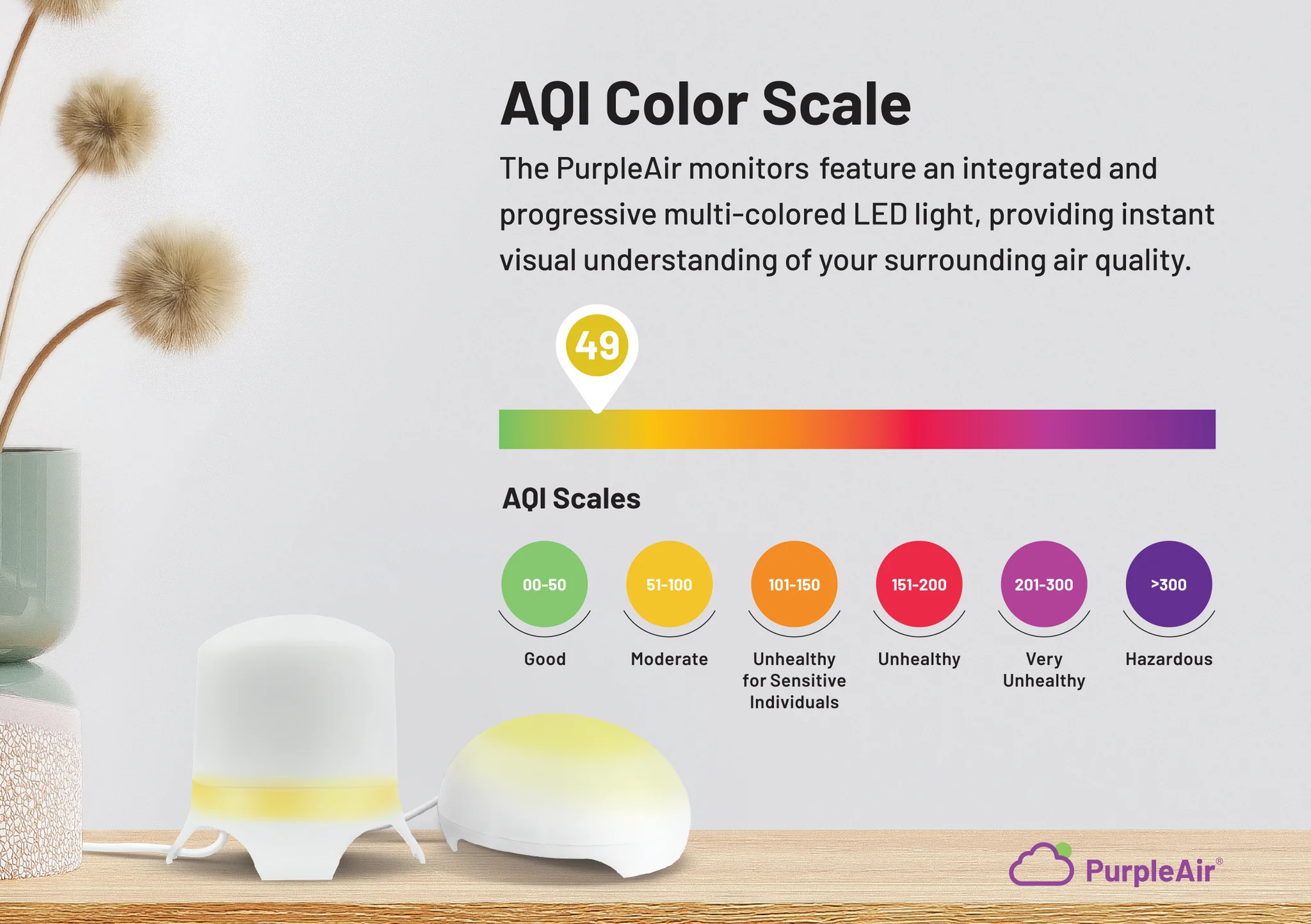

Designed for indoor use, The PurpleAir Touch rests comfortably on any surface in your home or office. The highly visible, full-color LED ring shows US AQI colors at a glance, easily viewable from across the room. Double-tap the top of the Touch to cycle through brightness levels. Connect the PurpleAir Touch to WiFi to see real-time PM2.5 data on the Real-Time Map. This PurpleAir indoor monitor provides industry-leading performance.

Overview:

  • New Generation PurpleAir indoor particulate sensor with multi-colored LED ring
  • Tap sensor for adjusting LED brightness, double tap the sensor to adjust LED brightness.
  • Single Laser Particle Counter (PMS-1003)
  • Pressure, Temperature, Humidity & Gas Sensor (BME688)
  • WiFi connectivity with data stored in the cloud

Spec:

Dimensions 4.25 in x 3 in x 2.25 in (108 mm x 67 mm x 57 mm)
Color Translucent white with real-time US EPA AQI multi-colored LED ring
Power requirements 5V USB Micro, 0.18A continuous, 600mA peak
Power cord length 3.2ft (1m) USB (Type A)
Intended Use Indoor use only
WiFi Yes
Expansion Port Yes
Internal Storage No
Warranty One (1) year limited warranty
Tap sensor for adjusting LED brightness, double tap the sensor to adjust LED brightness.
Manufacturer Kionix, Inc.
Model Number KX122-1037
Temperature range -40°F to 185°F (-40°C to 85°C)
Mechanical Shock (powered and unpowered) 5,000g for 0.5ms
10,000g for 0.2ms



Laser Particle Counters

Class 1 Laser. A Class 1 laser is safe under all conditions of normal use.
Manufacturer Plantower
Type PMS-1003
Range of measurement 0.3, 0.5, 1.0, 2.5, 5.0, & 10 μm
Counting efficiency 50% at 0.3μm & 98% at ≥0.5μm
Effective range
(PM2.5 standard)*		 0 to 500 μg/m³
Maximum range (PM2.5 standard)* ≥1000 μg/m³
Maximum consistency error (PM2.5 standard) ±10% at 100 to 500μg/m³ & ±10μg/m³ at 0 to 100μg/m³
Standard Volume 0.1 liter
Single response time ≤1 second
Total response time ≤10 seconds
Pressure, Temperature, Humidity, & Gas Sensor
Manufacturer BOSCH
Model Number BME688
Temperature range -40°F to 185°F (-40°C to 85°C)
Pressure range 300 to 1100 hPa
Humidity Response time (τ63%): 8s
Accuracy tolerance: ±3% RH
Hysteresis: ≤1.5% RH
Gas Response time (τ33-63%): <1s
Resolution: ±0.08%



Wireless

Contains Transmitter Module FCC ID: 2AC7Z-ESPWROOM02D
Wireless Networks 802.11b/g/n @ 2.4GHz
(WPA2 pre-shared key or open networks)
Certificates FCC/CE/TELEC/SRRC
Tx Power 802.11 b: +20 dBm
802.11 g: +17 dBm
802.11 n: +14 dBm
Rx Sensitivity 802.11 b: -91 dbm (11 Mbps)
802.11 g: -75 dbm (54 Mbps)
802.11 n: -72 dbm (MCS7)
Antenna Type 2 dBi on-board PCB antenna
FCC Compliance Statement (Part 15.19)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.       This device may not cause harmful interference, and

2.       This device must accept any interference received, including interference that may cause undesired operation.



Warning (Part 15.21)

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Interference Statement (Part 15.105 (b))

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

·       Reorient or relocate the receiving antenna.

·       Increase the separation between the equipment and receiver.

·       Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

·       Consult the dealer or an experienced radio/TV technician for help.



To comply with FCC/IC RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.



Additional information

Weight 0,2 kg
Dimensions 10 × 5 × 7 cm
