Classic Plus – Air Quality Monitor

Original price was: 370,00 €.Current price is: 340,00 €.

The PurpleAir Classic Plus is an upgraded outdoor air quality monitor featuring dual PMS-5003 laser particle sensors and Wi-Fi connectivity for real-time PM2.5 data via the PurpleAir Map. Designed for residential, commercial, and industrial use, it includes a new internal bracket for easy sensor replacement. Optional SD logging is available with the Classic SD Plus model.

7 in stock

SKU: 11 Category: Brand:

Description

The PurpleAir Classic Plus is an updated version of our popular classic monitor.

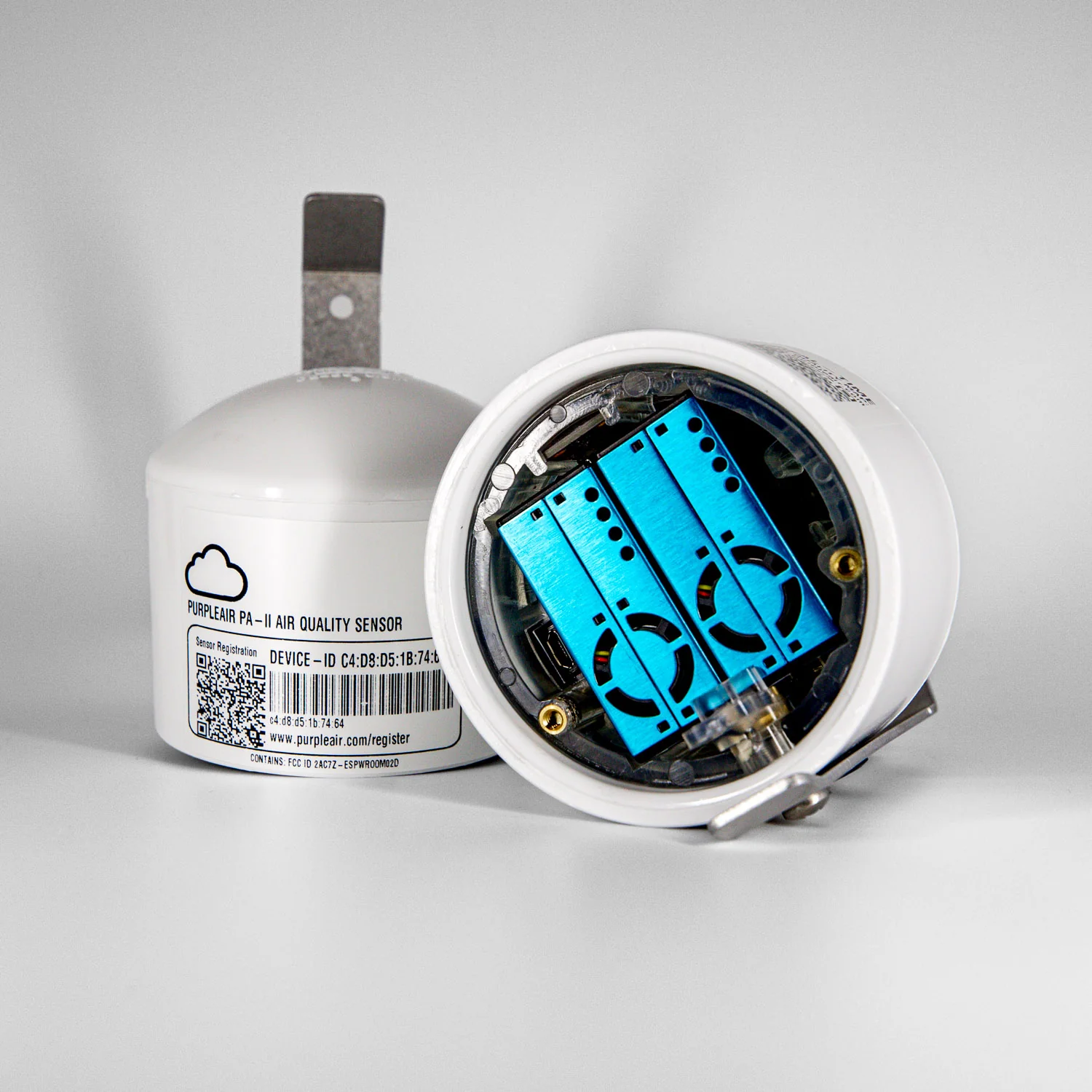

Using exactly the same components and structure as the Classic with one change: A new internal bracket to make replacing the laser counters easy.

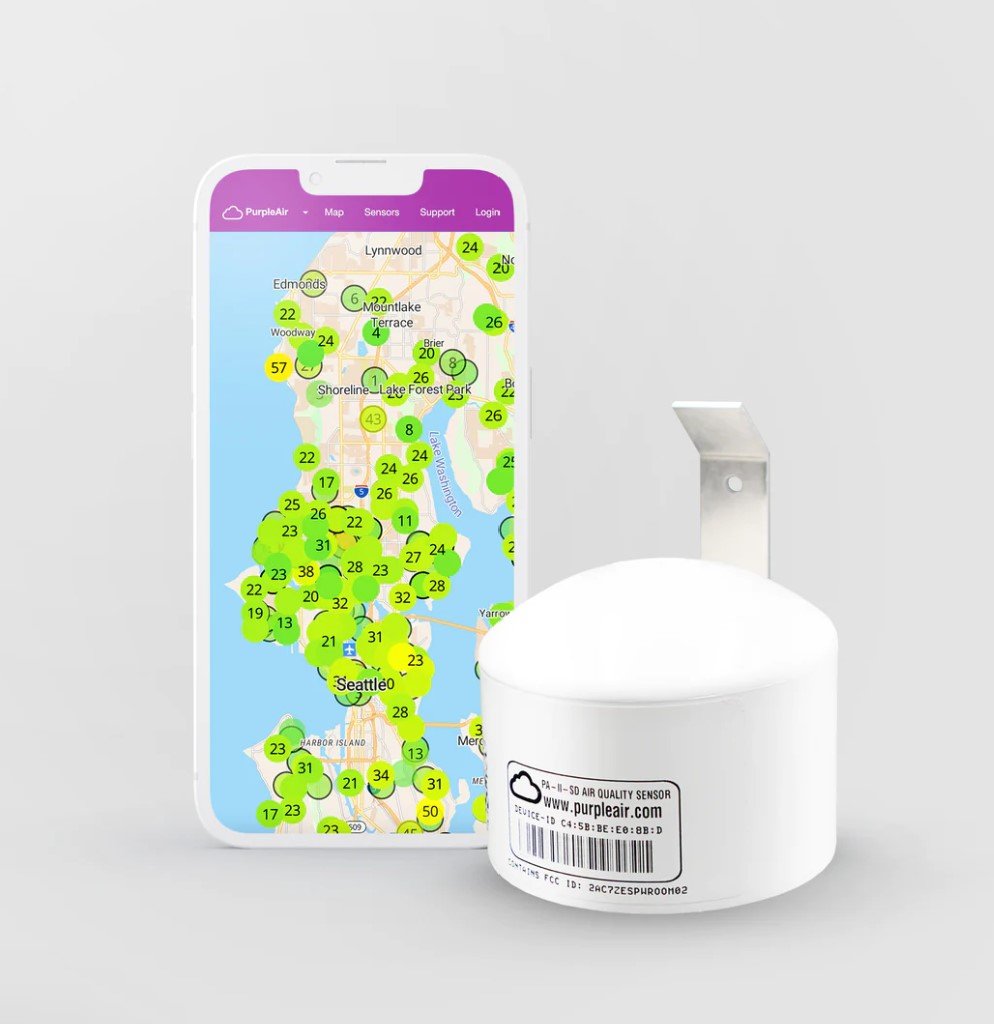

Designed for outdoor use, this monitor is perfect for residential, commercial, or industrial users looking for a reliable way to collect real-time PM2.5 AQI data. Connect it to WiFi to transmit that data to the interactive map, which is accessible by any smart device.

This model is also available with offline data collection capabilities via an SD logger — offered as the Classic SD Plus (with SD storage)



Overview:

  • Classic PurpleAir PA-II particulate sensor
  • Dual Laser Particle Counters (PMS-5003)
  • Pressure, Temperature & Humidity Sensor (BME280)
  • WiFi connectivity with data stored in the cloud



Spec:

Classic PurpleAir dual laser particulate sensor

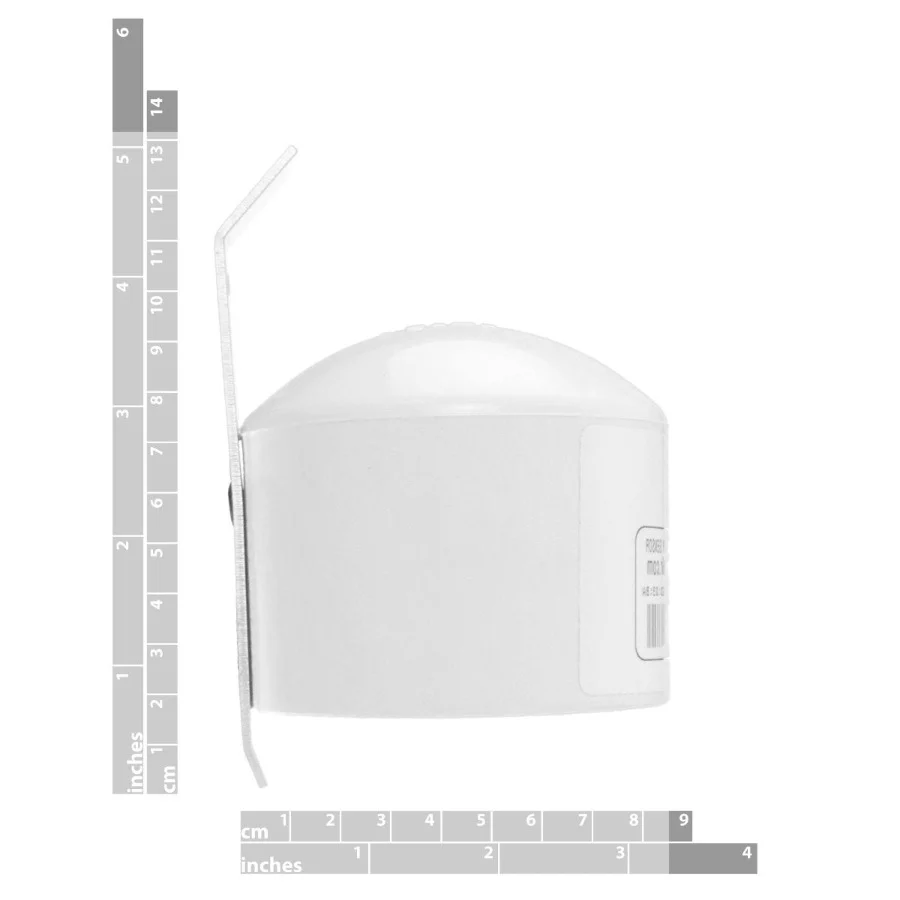

Dimensions 3.5 in x 3.5 in x 5 in
(85 mm x 85 mm x 125 mm)
Color White
Power requirements 5V USB Micro, 0.18A continuous, 600mA peak
Intended Use Outdoor and indoor use
WiFi Yes
Expansion Port No
Internal Storage No
Warranty One (1) year limited warranty
Laser Particle Counters

Class 1 Laser. A Class 1 laser is safe under all conditions of normal use.
Manufacturer Plantower
This device contains two particle detectors to provide redundancy and help determine sensor health.
Type PMS-5003 (2)
Range of measurement 0.3, 0.5, 1.0, 2.5, 5.0, & 10 μm
Counting efficiency 50% at 0.3μm & 98% at ≥0.5μm
Effective range
(PM2.5 standard)*		 0 to 500 μg/m³
Maximum range (PM2.5 standard)* ≥1000 μg/m³
Maximum consistency error (PM2.5 standard) ±10% at 100 to 500μg/m³ & ±10μg/m³ at 0 to 100μg/m³
Standard Volume 0.1 liter
Single response time ≤1 second
Total response time ≤10 seconds



Pressure, Temperature, & Humidity Sensor
Manufacturer BOSCH
Model Number BME280
Temperature range -40°F to 185°F (-40°C to 85°C)
Pressure range 300 to 1100 hPa
Humidity Response time (τ63%): 1s
Accuracy tolerance: ±3% RH
Hysteresis: ≤2% RH
Wireless

Contains Transmitter Module FCC ID: 2AC7Z-ESPWROOM02D
Wireless Networks 802.11b/g/n @ 2.4GHz
(WPA2 pre-shared key or open networks)
Certificates FCC/CE/TELEC/SRRC
Tx Power 802.11 b: +20 dBm
802.11 g: +17 dBm
802.11 n: +14 dBm
Rx Sensitivity 802.11 b: -91 dbm (11 Mbps)
802.11 g: -75 dbm (54 Mbps)
802.11 n: -72 dbm (MCS7)
Antenna Type 2 dBi on-board PCB antenna
FCC Compliance Statement (Part 15.19)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.       This device may not cause harmful interference, and

2.       This device must accept any interference received, including interference that may cause undesired operation.



Warning (Part 15.21)

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Interference Statement (Part 15.105 (b))

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

·       Reorient or relocate the receiving antenna.

·       Increase the separation between the equipment and receiver.

·       Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

·       Consult the dealer or an experienced radio/TV technician for help.



To comply with FCC/IC RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.



Additional information

Weight 0,2 kg
Dimensions 10 × 5 × 7 cm
